Christmas Train Controller

My kids have been bugging me for years to get a train set to put under the Christmas tree. They like the thrill of watching train circle the base of the tree, and besides there’s a Christmas train set at Nanny and Pop’s house!

We found a cheap Christmas train set at our local variety store. After putting it together and giving it a run I discovered that the train runs on batteries (not surprise here) and has an on/off switch underneath the loco. One of the track sections has a lever which raises and lowers a cam which turns the train on or off.

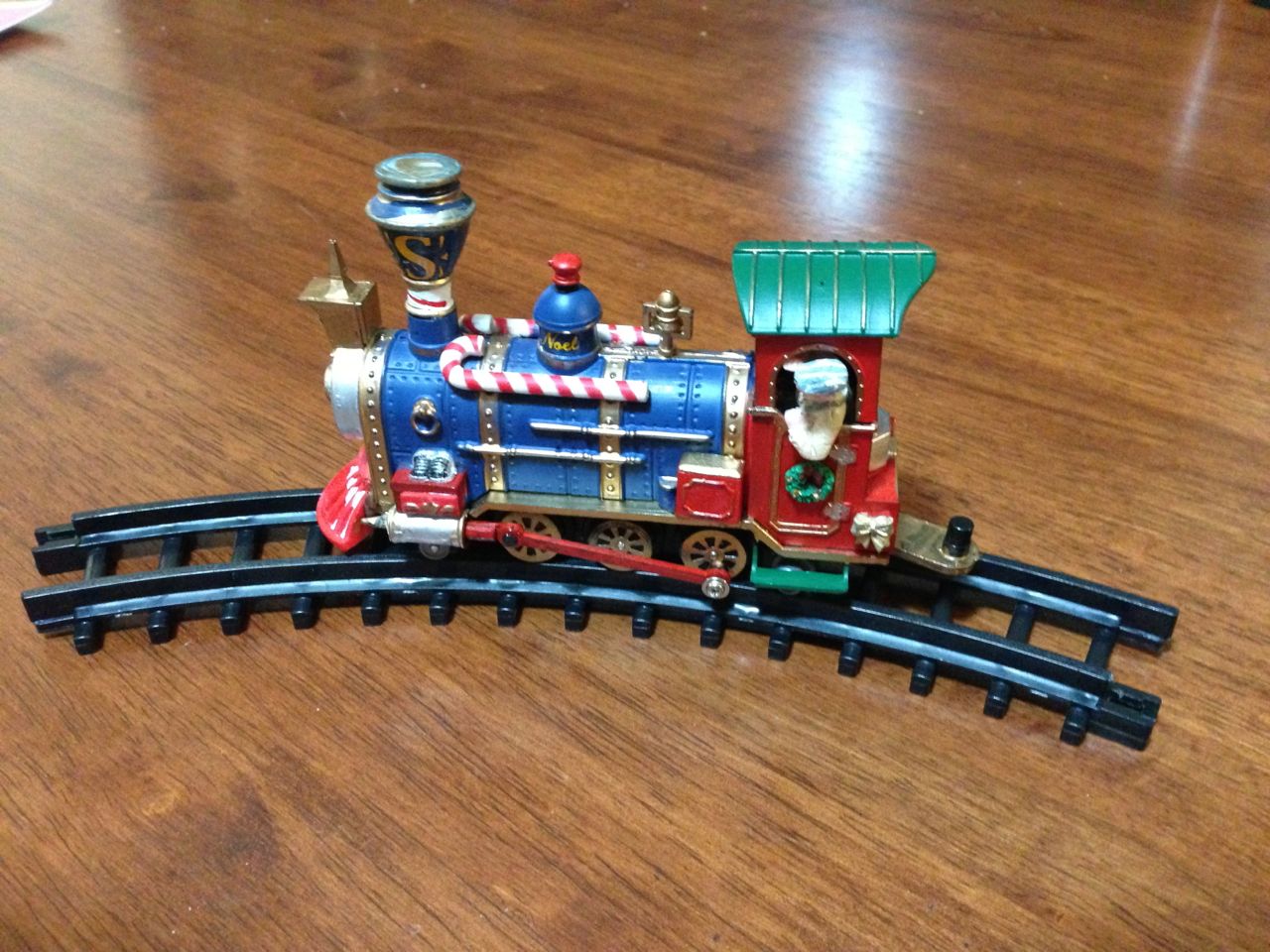

: Christmas train.

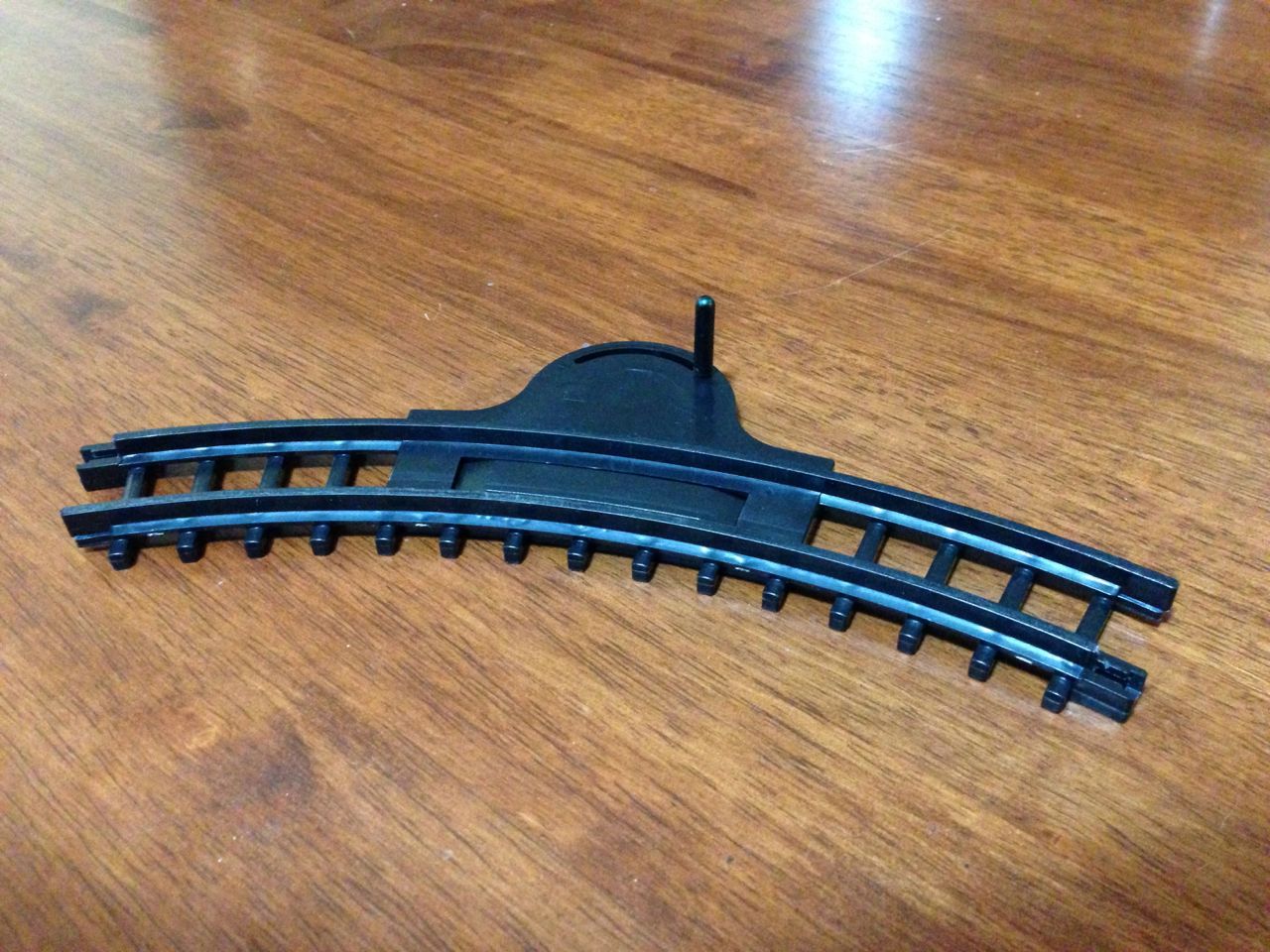

: Track section.

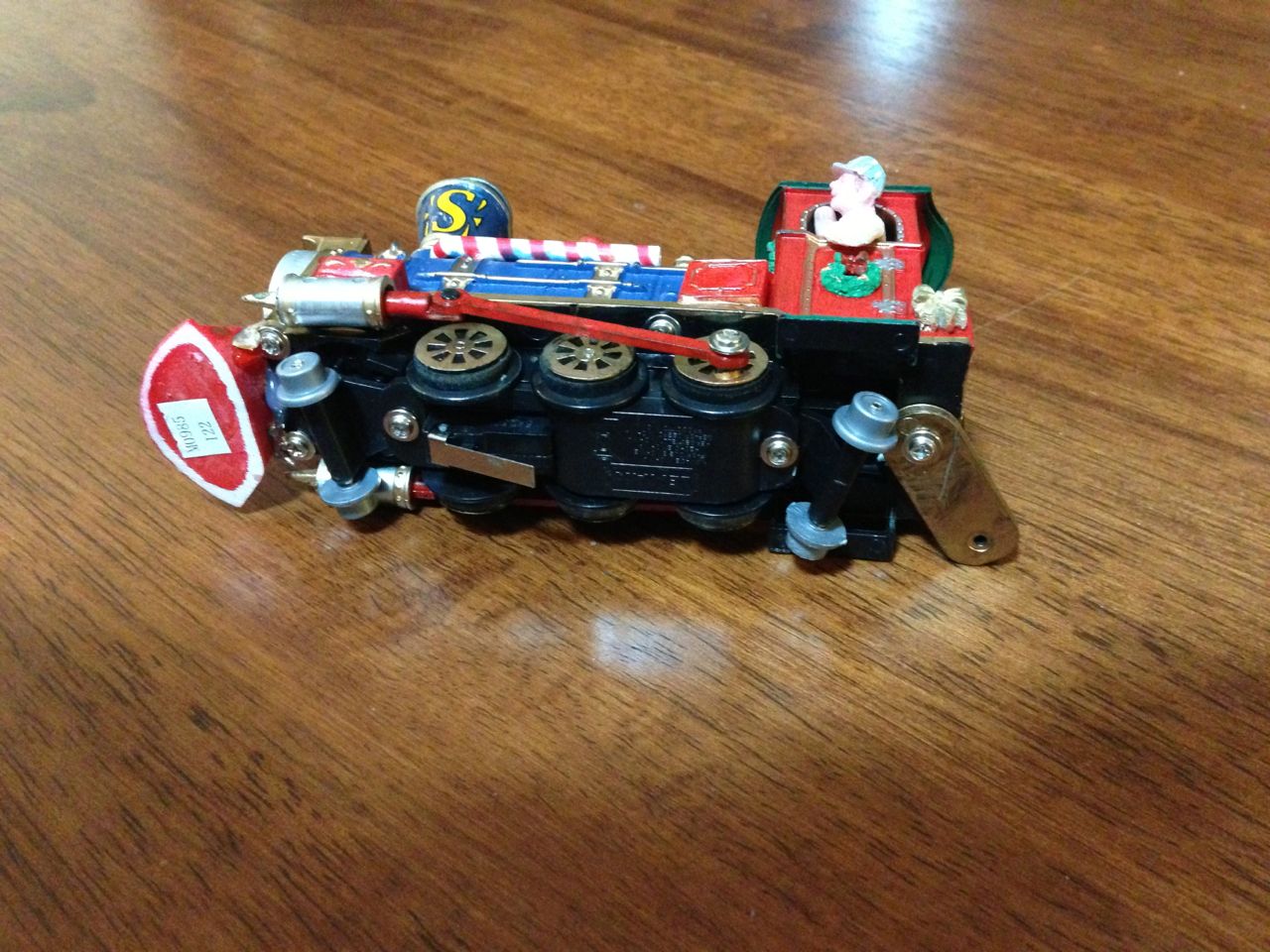

: Christmas train showing switch.

The train also plays an audio track when it’s turned on. When the kids hear that sound they come running. They also now bug me to run the train. Time to hack the train set…

I want to be able to automatically turn the train on and off and I want to be able to schedule when the train is turned on and off.

To turn the train on and off I want to use an RC servo controlled by an Arduino to move the lever between the on and off positions. I drew a base plate to be laser cut from 6mm aluminium plate. The track section with the level is placed into the base plate and a RC servo motor mounted on the base plate so that it can actuate the lever.

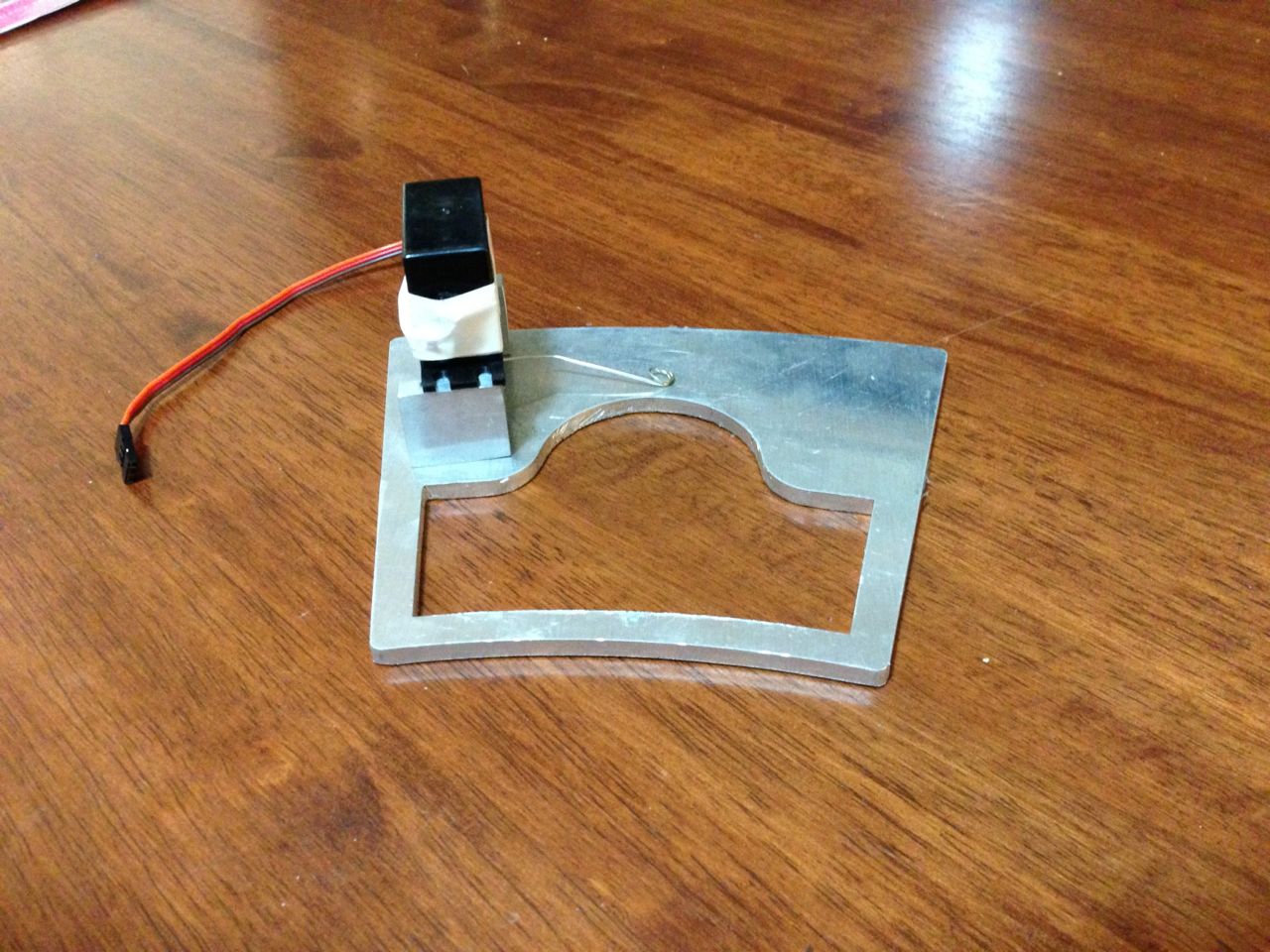

: Base plate.

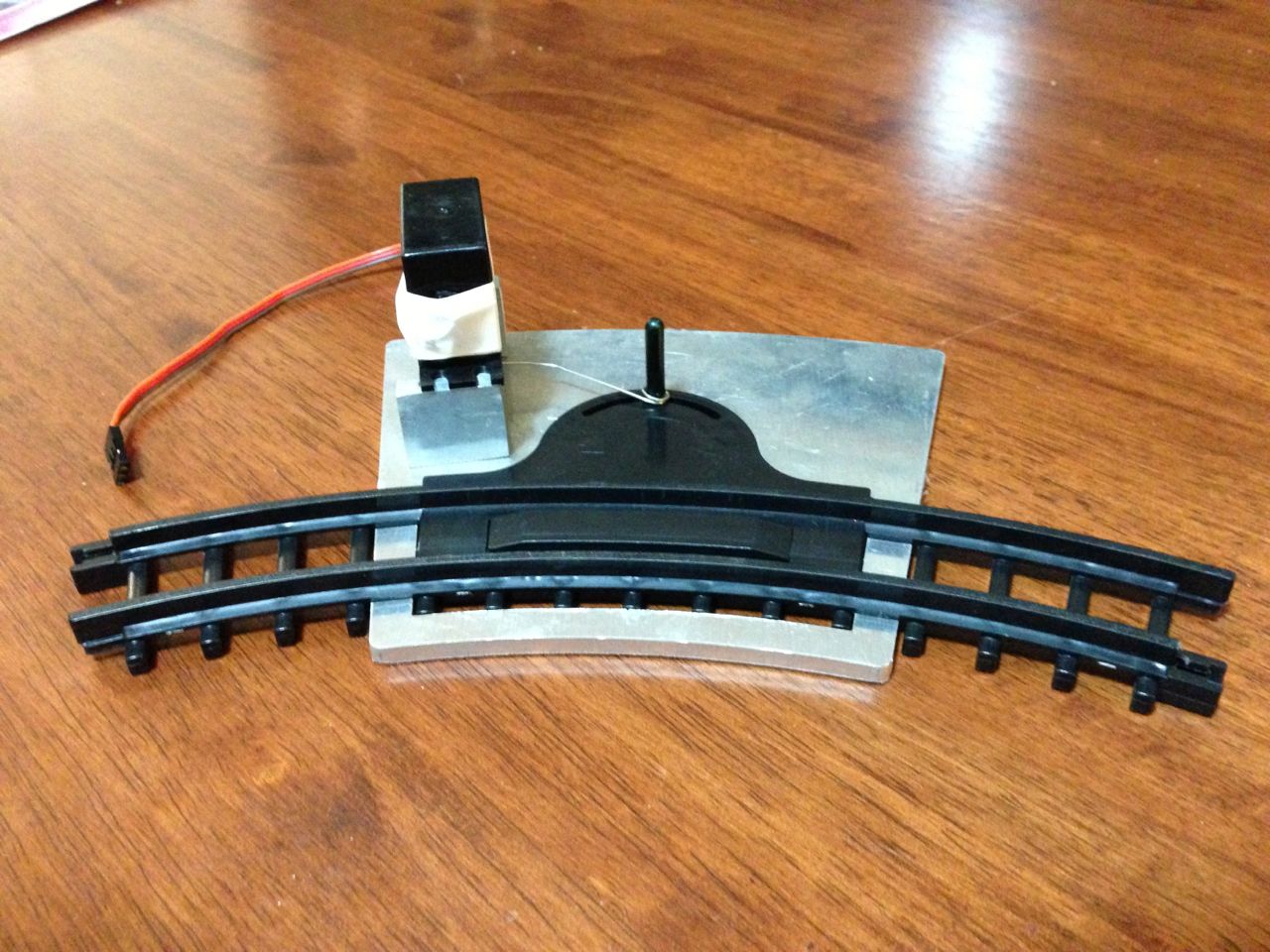

: Base plate with track section.

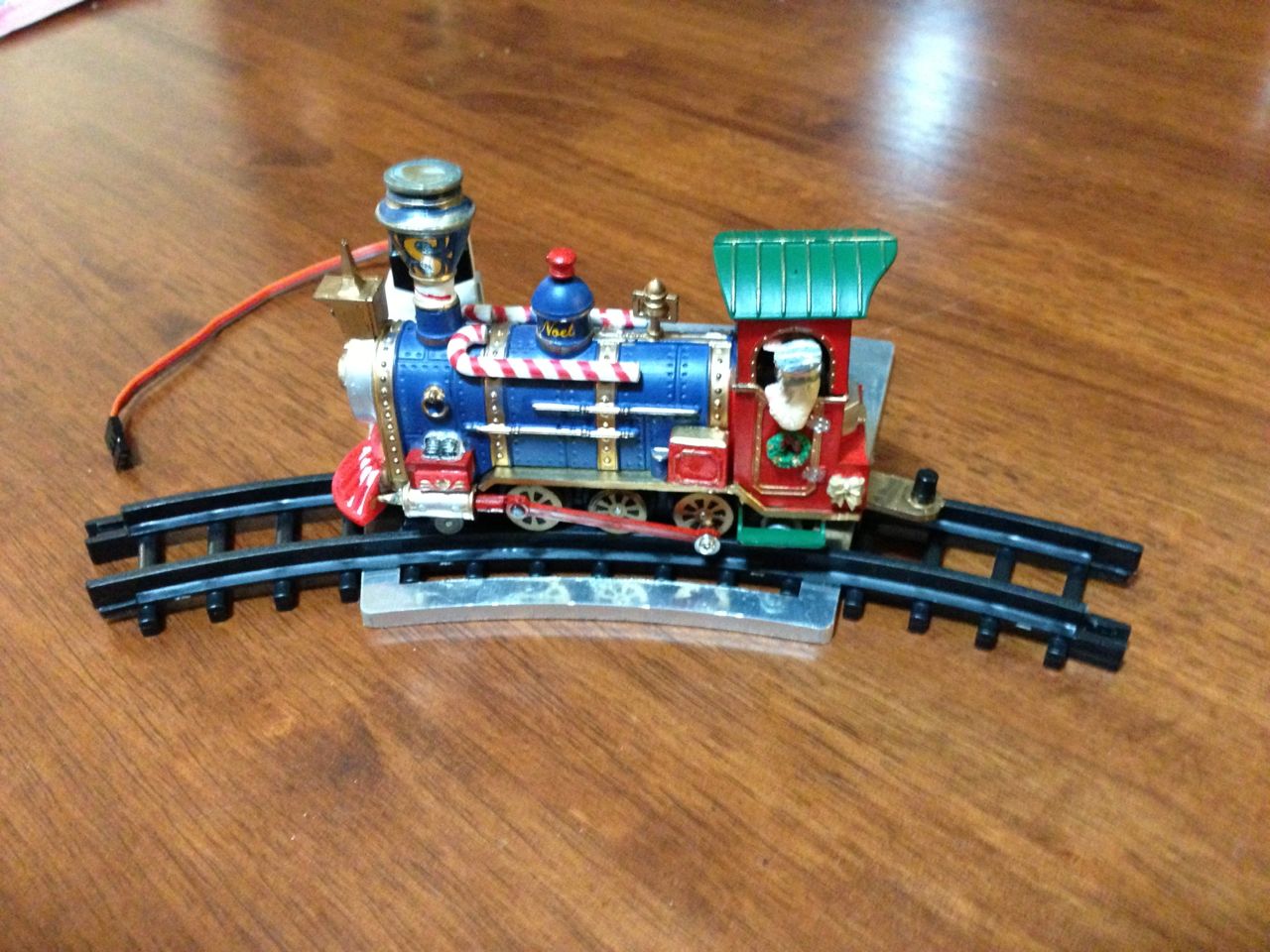

: Christmas train on track.

The Arduino will control the RC servo with the standard Servo library. To keep accurate time I’ll need a real time clock which is not built into the Arduino. I used the DS1307 RTC kit from adafruit. This will allow me to run the train for 1 minute on the half hour in the evenings.

// Date and time functions using a DS1307 RTC connected via I2C and Wire lib
// RTC communications based on example code here:
// http://learn.adafruit.com/ds1307-real-time-clock-breakout-board-kit/understanding-the-code
//
// RC servo contorl base on example code here:
// http://arduino.cc/en/Reference/ServoWrite

#include <Wire.h>
#include <Servo.h>
#include "RTClib.h"      // http://github.com/adafruit/DS1307-breakout-board

RTC_DS1307 RTC;          // real time clock object
Servo servoControl;      // rc servo object

// pin definitions
int pinRTCGnd = 16;      // analog pin 2 - used by Wire library
int pinRTC5V = 17;       // analog pin 3 - used by Wire library
int pinRTCSDA = 4;       // analog pin 4
int pinRTCSCL = 5;       // analog pin 5
int pinLED = 13;         // onboard LED/digital pin 13
int pinServoControl = 9; // digital pin 9

int angleOn = 179;       // position of rc servo to turn train on
int angleOff = 90;       // position of rc servo to turn train off

// array to look up which hours the train should be turned on
int onHours[] = {
  0,0,0,0,0,0, // 0-5
  0,0,0,0,0,0, // 6-11
  0,0,0,0,0,1, // 12-17
  1,1,0,0,0,0  // 18-23
};

// array to look up which minutes the train should be turned on
int onMinutes[] = {
  1,1,0,0,0,0,0,0,0,0, // 0-9
  0,0,0,0,0,0,0,0,0,0, // 10-19
  0,0,0,0,0,0,0,0,0,0, // 20-29
  1,0,0,0,0,0,0,0,0,0, // 30-39
  0,0,0,0,0,0,0,0,0,0, // 40-49
  0,0,0,0,0,0,0,0,0,0  // 50-59
};

void setup () {
  //set IO pins
  pinMode(pinLED, OUTPUT); // onboard LED
  pinMode(pinRTC5V,OUTPUT); digitalWrite(pinRTC5V,HIGH); // +5V for real time clock
  pinMode(pinRTCGnd,OUTPUT); digitalWrite(pinRTCGnd,LOW); // GND for real time clock

  // setup the real time clock
  Wire.begin(); // setup i2c communication
  RTC.begin();  // setup real time clock
  if (! RTC.isrunning()) {
    Serial.println("RTC is NOT running!");
    // following line sets the RTC to the date & time this sketch was compiled
    RTC.adjust(DateTime(__DATE__, __TIME__));
  }

  // setup the rc servo
  servoControl.attach(pinServoControl); // attach servo
  servoControl.write(angleOff);         // set to off position

  // setup serial monitor
  Serial.begin(57600); // setup serial communication
}//end setup

void loop () {
  DateTime now = RTC.now(); // get time from real time clock

  if(onHours[now.hour()] && onMinutes[now.minute()]) {
    // train is on
    digitalWrite(pinLED,HIGH);
    servoControl.write(angleOn);
  } else {
    // train is off
    digitalWrite(pinLED,LOW);
    servoControl.write(angleOff);
  }

  sendTime(now); // send time from start of loop to the serial monitor

  delay(1000);   // wait 1 second before running through loop again
}// end loop

void sendTime(DateTime now) {
  // send time to the serial monitor
  Serial.print(now.year(), DEC);
  Serial.print('/');
  Serial.print(now.month(), DEC);
  Serial.print('/');
  Serial.print(now.day(), DEC);
  Serial.print(' ');
  Serial.print(now.hour(), DEC);
  Serial.print(':');
  Serial.print(now.minute(), DEC);
  Serial.print(':');
  Serial.print(now.second(), DEC);
  Serial.println();
}

// Date and time functions using a DS1307 RTC connected via I2C and Wire lib

// RTC communications based on example code here:

// http://learn.adafruit.com/ds1307-real-time-clock-breakout-board-kit/understanding-the-code

// RC servo contorl base on example code here:

// http://arduino.cc/en/Reference/ServoWrite

#include <Wire.h>

#include <Servo.h>

#include "RTClib.h" // http://github.com/adafruit/DS1307-breakout-board

RTC_DS1307 RTC; // real time clock object

Servo servoControl; // rc servo object

// pin definitions

int pinRTCGnd = 16; // analog pin 2 - used by Wire library

int pinRTC5V = 17; // analog pin 3 - used by Wire library

int pinRTCSDA = 4; // analog pin 4

int pinRTCSCL = 5; // analog pin 5

int pinLED = 13; // onboard LED/digital pin 13

int pinServoControl = 9; // digital pin 9

int angleOn = 179; // position of rc servo to turn train on

int angleOff = 90; // position of rc servo to turn train off

// array to look up which hours the train should be turned on

int onHours[] = {

0,0,0,0,0,0, // 0-5

0,0,0,0,0,0, // 6-11

0,0,0,0,0,1, // 12-17

1,1,0,0,0,0 // 18-23

};

// array to look up which minutes the train should be turned on

int onMinutes[] = {

1,1,0,0,0,0,0,0,0,0, // 0-9

0,0,0,0,0,0,0,0,0,0, // 10-19

0,0,0,0,0,0,0,0,0,0, // 20-29

1,0,0,0,0,0,0,0,0,0, // 30-39

0,0,0,0,0,0,0,0,0,0, // 40-49

0,0,0,0,0,0,0,0,0,0 // 50-59

};

void setup () {

//set IO pins

pinMode(pinLED, OUTPUT); // onboard LED

pinMode(pinRTC5V,OUTPUT); digitalWrite(pinRTC5V,HIGH); // +5V for real time clock

pinMode(pinRTCGnd,OUTPUT); digitalWrite(pinRTCGnd,LOW); // GND for real time clock

// setup the real time clock

Wire.begin(); // setup i2c communication

RTC.begin(); // setup real time clock

if (! RTC.isrunning()) {

Serial.println("RTC is NOT running!");

// following line sets the RTC to the date & time this sketch was compiled

RTC.adjust(DateTime(__DATE__, __TIME__));

}

// setup the rc servo

servoControl.attach(pinServoControl); // attach servo

servoControl.write(angleOff); // set to off position

// setup serial monitor

Serial.begin(57600); // setup serial communication

}//end setup

void loop () {

DateTime now = RTC.now(); // get time from real time clock

if(onHours[now.hour()] && onMinutes[now.minute()]) {

// train is on

digitalWrite(pinLED,HIGH);

servoControl.write(angleOn);

} else {

// train is off

digitalWrite(pinLED,LOW);

servoControl.write(angleOff);

}

sendTime(now); // send time from start of loop to the serial monitor

delay(1000); // wait 1 second before running through loop again

}// end loop

void sendTime(DateTime now) {

// send time to the serial monitor

Serial.print(now.year(), DEC);

Serial.print('/');

Serial.print(now.month(), DEC);

Serial.print('/');

Serial.print(now.day(), DEC);

Serial.print(' ');

Serial.print(now.hour(), DEC);

Serial.print(':');

Serial.print(now.minute(), DEC);

Serial.print(':');

Serial.print(now.second(), DEC);

Serial.println();

}
